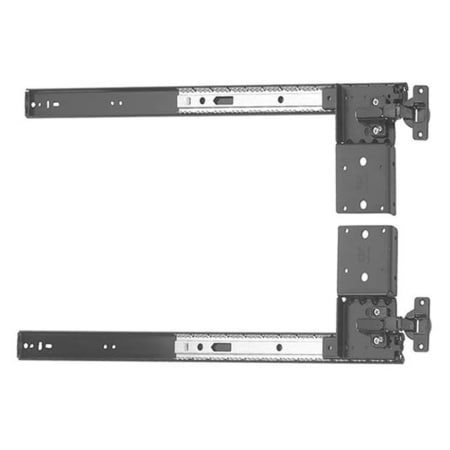

Knape and Vogt 24 Inch 3/4 Extension Ball Bearing Cabinet Door Pivot Slide and Hinge Combo with 30 Pound Weight Capacity and Self Close - Pair

Features:

• Meets standards for ANSI/BHMA certification
• Convert normal cabinet doors to pivoting pocket doors
• Designed for doors up to 72" tall by 26" wide
• Includes a limited lifetime manufacturer warranty

Product Technologies:

• Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your cabinet doors do not slide back open when closed with too much force.

• Inset: An inset hinge is needed when the cabinet door sits inside the cabinet frame. Used with either face-frame or panel cabinets where having a door flush with the frame is ideal.

• Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.

Specifications:

• Length: 24"
• Extension: 18"
• Extension Type: 3/4 Extension
• Maximum Width: 24"
• Maximum Height: 42"
• Weight Capacity: 30 lbs.
• Slide Type: Ball Bearing
• Material: Steel
• Quantity: 2

• 8070PEZ 12: 12 Inch Cabinet Slide
• 8070PEZ 14: 14 Inch Cabinet Slide
• 8070PEZ 16: 16 Inch Cabinet Slide
• 8070PEZ 18: 18 Inch Cabinet Slide
• 8070PEZ 20: 20 Inch Cabinet Slide
• 8070PEZ 22: 22 Inch Cabinet Slide
• 8070PEZ 24 (This Model): 24 Inch Cabinet Slide
