Item # bci3412528

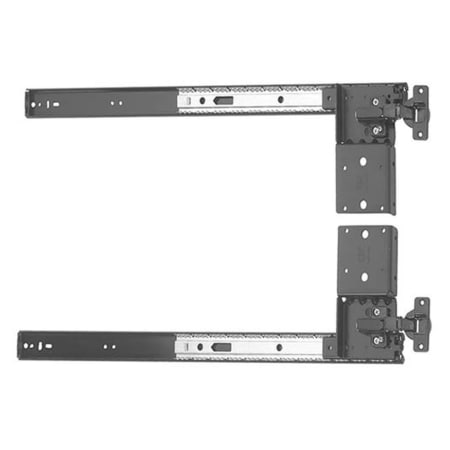

Knape and Vogt 14 Inch 3/4 Extension Ball Bearing Cabinet Door Pivot Slide with 30 Pound Weight Capacity - Pair

Model: KV8071PEZEB14

$41.15
Finish: Choose Finish
  • Black
  • Black
    Black
    $41.15
    74 In Stock

Free Shipping on orders over $49.00!

74 In Stock

Product Overview

Features:

  • Includes two (2) pivot slides, purchase hinges and baseplate separately
  • Meets standards for ANSI/BHMA certification
  • Convert normal cabinet doors to pivoting pocket doors
  • Designed for doors up to 72" tall by 26" wide
  • Includes a limited lifetime manufacturer warranty

Product Technologies:

  • Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your cabinet doors do not slide back open when closed with too much force.

Specifications:

  • Length: 14"
  • Extension: 10-1/2"
  • Extension Type: 3/4 Extension
  • Maximum Width: 24"
  • Maximum Height: 42"
  • Weight Capacity: 30 lbs.
  • Slide Type: Ball Bearing
  • Material: Steel
  • Quantity: 2
Product Variations:
  • 8071PEZ 12: 12 Inch Cabinet Slide
  • 8071PEZ 14 (This Model): 14 Inch Cabinet Slide
  • 8071PEZ 16: 16 Inch Cabinet Slide
  • 8071PEZ 18: 18 Inch Cabinet Slide
  • 8071PEZ 20: 20 Inch Cabinet Slide
  • 8071PEZ 22: 22 Inch Cabinet Slide
  • 8071PEZ 24: 24 Inch Cabinet Slide

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Extension
10.5 in.
Length
14 in.
Max Capacity (Pounds)
30 lbs.
Maximum Height
42 in.
Maximum Width
24 in.
Quantity
2

Characteristics and Features

Cabinet Type
Panel (Frameless)
Demountable
No
Detent
Yes
Extension Type
3/4 Extension
Installation Type
Screw
Material
Steel
Mount Type
Side Mount
Push to Open
No
Self Closing
No
Slide Type
Ball Bearing
Soft Close
No

Warranty and Product Information

Approved for Commercial Use
No
Certifications
ANSI
Manufacturer Warranty
Limited Lifetime
